GPUsed

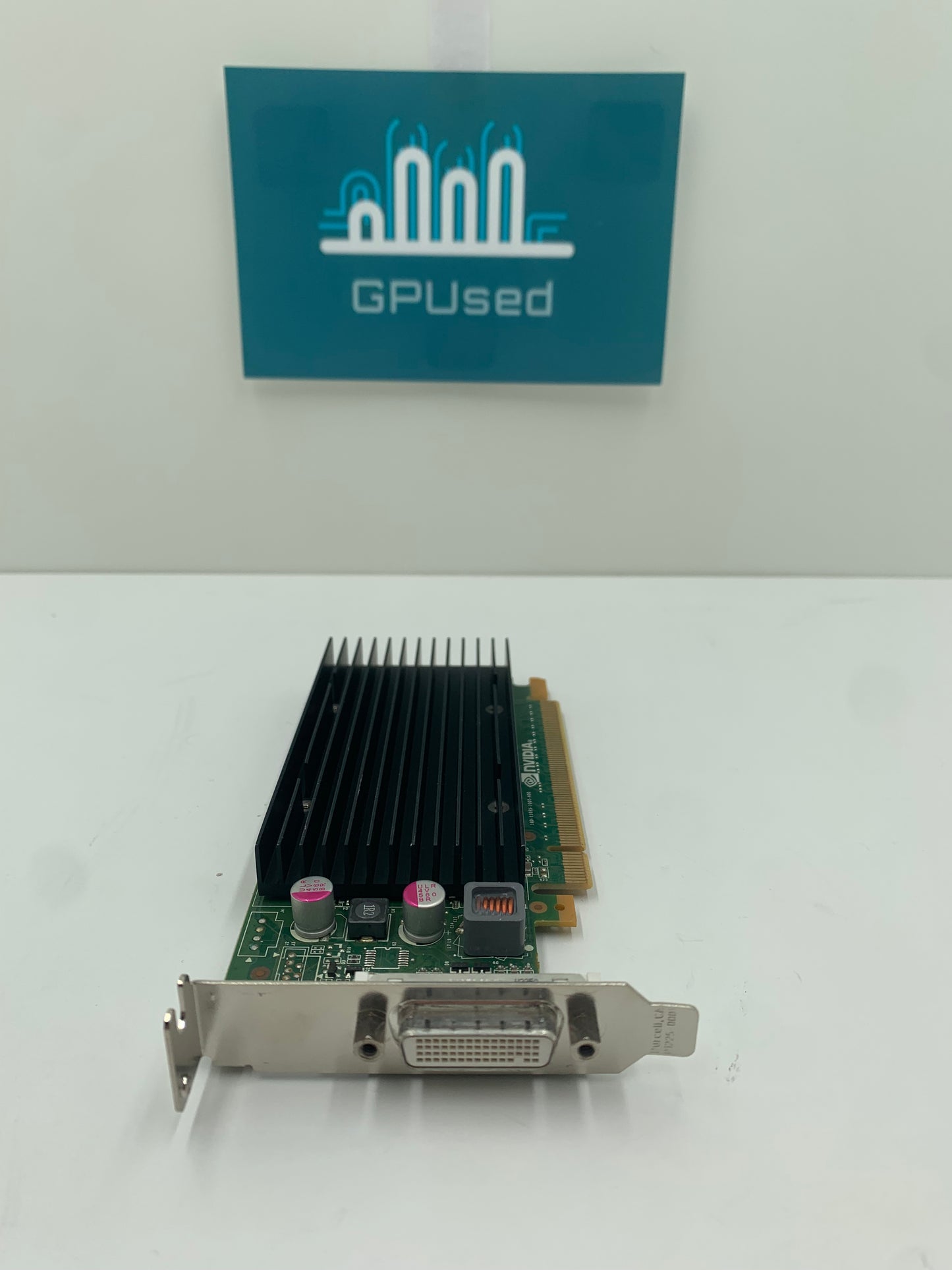

Nvidia Quadro NVS 300 - A

Nvidia Quadro NVS 300 - A

Regular price £7.99 GBP
Regular price Sale price £7.99 GBP
Sale Just sold out!
Tax included. Shipping calculated at checkout.

Graphics Processor

GPU Name
GT218S
GPU Variant
GT218-670-B1
Architecture
Tesla 2.0
Foundry
TSMC
Process Size
40 nm
Transistors
260 million
Density
4.6M / mm²
Die Size
57 mm²
Chip Package
BGA-533

Graphics Card

Release Date
Jan 8th, 2011
Generation
NVS
Production
End-of-life
Launch Price
109 USD
Bus Interface
PCIe 2.0 x16
Reviews
26 in our database

Relative Performance

GeForce 210
100%
NVS 300
100%
GeForce 9400 GT
128%
Radeon HD 4550
158%
Radeon HD 5450
202%
Radeon HD 6450
237%
GeForce GT 520
250%
GeForce GT 220
310%
GeForce GT 430
405%
Radeon HD 5570
410%
Radeon HD 4670
446%
GeForce GT 440
470%
GeForce GT 240
480%
GeForce 9600 GT
551%
Radeon HD 5670
585%
GeForce GT 640
627%
GeForce 9800 GT
649%
Radeon HD 6670
675%
Radeon HD 4830
696%
Radeon HD 4770
744%
Radeon HD 4850
784%
GeForce GTS 250
801%
GeForce GTS 450
826%
Radeon HD 5750
854%
Radeon HD 7750
975%
Radeon HD 5770
983%
GeForce GTX 260
1001%
Radeon HD 4870
1013%
Radeon Vega 8
1015%
GeForce GTX 550 Ti
1026%
GeForce GTX 650
1035%
Radeon HD 5830
1094%
Radeon HD 6790
1151%
Radeon HD 4890
1170%
GeForce GTX 460
1214%
Radeon RX Vega 11
1223%
GeForce GT 1030
1235%
GeForce GTX 275
1246%
Radeon HD 7770 GHz Edition
1250%
GeForce GTX 280
1252%
GeForce GTX 465
1277%
Radeon HD 6850
1338%
GeForce GTX 285
1364%
Radeon HD 5850
1463%
GeForce GTX 650 Ti
1490%
Radeon HD 7790
1490%
Radeon RX 550
1554%
GeForce GTX 470
1557%
Radeon HD 6870
1613%
Radeon HD 5870
1721%
GeForce GTX 560 Ti
1776%
Radeon HD 4870 X2
1785%
GeForce GTX 750 Ti
1817%
Radeon HD 6950
1826%
GeForce GTX 295
1890%
GeForce GTX 650 Ti Boost
1913%
Radeon HD 7850
1926%
GeForce GTX 480
1961%
Radeon HD 6970
2051%
Radeon R7 265
2091%
Radeon RX 460
2125%
Radeon R7 370
2125%
GeForce GTX 660
2133%
GeForce GTX 570
2139%
Radeon RX 560
2174%
GeForce GTX 950
2309%
Radeon HD 7870 GHz Edition
2329%
Radeon R9 270X
2386%
GeForce GTX 660 Ti
2415%
GeForce GTX 580
2426%
GeForce GTX 1050
2446%
Radeon HD 7950
2451%
GeForce GTX 1630
2497%
Radeon HD 5970
2499%
GeForce GTX 760
2570%
GeForce GTX 670
2766%
GeForce GTX 960
2838%
Radeon R9 380
2910%
Radeon R9 285
2927%
Radeon HD 7970
2957%
GeForce GTX 680
2988%
GeForce GTX 1050 Ti
3057%
GeForce GTX 770
3137%
Radeon HD 6990
3210%
Radeon R9 280X
3287%
GeForce GTX 590
3333%
Radeon HD 7970 GHz Edition
3335%
GeForce GTX 780
3695%
Arc A380
3700%
Radeon RX 6400
3750%
GeForce GTX 1650
3827%
Radeon RX 470
4066%
Radeon R9 290
4122%
Radeon RX 570
4344%
Radeon R9 390
4398%
Radeon R9 290X
4421%
GeForce GTX 970
4481%
GeForce GTX TITAN
4540%
GeForce GTX 780 Ti
4601%
Radeon R9 390X
4666%
Radeon HD 7990
4687%
Radeon RX 480
4709%
GeForce GTX 690
4749%
GeForce GTX 1060 6 GB
4877%
Radeon RX 5500 OEM
4944%
Radeon RX 580
5004%
Radeon RX 5500 XT
5043%
Radeon RX 6500 XT
5086%
GeForce GTX 980
5108%
GeForce GTX 1650 SUPER
5152%
Radeon R9 FURY
5174%
Radeon RX 590
5404%
Radeon R9 295X2
5691%
GeForce GTX 1660
5723%
Radeon R9 FURY X
5789%
GeForce GTX 980 Ti
5887%
GeForce GTX TITAN X
6040%
GeForce GTX 1660 SUPER
6222%
GeForce GTX 1660 Ti
6569%
GeForce GTX 1070
6569%
GeForce RTX 3050 8 GB
6676%
Radeon RX Vega 56
6994%
GeForce GTX 1070 Ti
7418%
Radeon RX 5600 XT
7528%
Radeon RX Vega 64
7629%
GeForce RTX 2060
7735%
GeForce GTX 1080
7735%
Radeon RX 5700
8054%
Radeon RX 6600
8407%
GeForce RTX 2060 SUPER
8689%
GeForce RTX 2070
8802%
Radeon RX 5700 XT
8809%
GeForce RTX 3060 12 GB
8982%
Arc A750
9275%
Radeon VII
9325%
TITAN X Pascal
9566%
Radeon RX 6600 XT
9664%
GeForce GTX 1080 Ti
9855%
Arc A770
9953%
GeForce RTX 2070 SUPER
9961%
Radeon RX 6650 XT
10477%
Radeon RX 7600
10594%
GeForce RTX 4060
10643%
GeForce RTX 2080
10714%
GeForce RTX 2080 SUPER
11233%
GeForce RTX 3060 Ti
11507%
Radeon RX 6700 XT
11912%
Radeon RX 6750 XT
12643%
GeForce RTX 4060 Ti 8 GB
12781%
GeForce RTX 2080 Ti
12876%
GeForce RTX 3070
13476%
GeForce RTX 3070 Ti
14419%
Radeon RX 7700 XT
14571%
Radeon RX 6800
14854%
GeForce RTX 4070
16459%
Radeon RX 6800 XT
16871%
GeForce RTX 3080
17513%
Radeon RX 7800 XT
17688%
Radeon RX 6900 XT
18180%
GeForce RTX 3080 Ti
19618%
Radeon RX 6950 XT
19642%
GeForce RTX 3090
19987%
GeForce RTX 4070 Ti
20490%
Radeon RX 7900 XT
22660%
GeForce RTX 3090 Ti
22857%
GeForce RTX 4080
26029%
Radeon RX 7900 XTX
26671%
GeForce RTX 4090
33195%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
520 MHz
Shader Clock
1230 MHz
Memory Clock
790 MHz
1580 Mbps effective

Memory

Memory Size
512 MB
Memory Type
DDR3
Memory Bus
64 bit
Bandwidth
12.64 GB/s

Render Config

Shading Units
16
TMUs
8
ROPs
4
SM Count
2
L2 Cache
32 KB

Theoretical Performance

Pixel Rate
2.080 GPixel/s
Texture Rate
4.160 GTexel/s
FP32 (float)
39.36 GFLOPS

Board Design

Slot Width
Single-slot
Length
145 mm
5.7 inches
TDP
18 W
Suggested PSU
200 W
Outputs
1x DMS-59
Power Connectors
None
Board Number
P1035

Graphics Features

DirectX
11.1 (10_1)
OpenGL
3.3
OpenCL
1.1
Vulkan
N/A
CUDA
1.2
Shader Model
4.1

GT218S GPU Notes

PureVideo HD: VP4
VDPAU: Feature Set C





This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!



All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.



Here's the GPUsed product grading system (currently only in place for GPUs)

A+ - New or Like new

A - Excellent / Very good for a used item (our most common grade)

B - Working (may have some cosmetic issues but won't affect performance)
