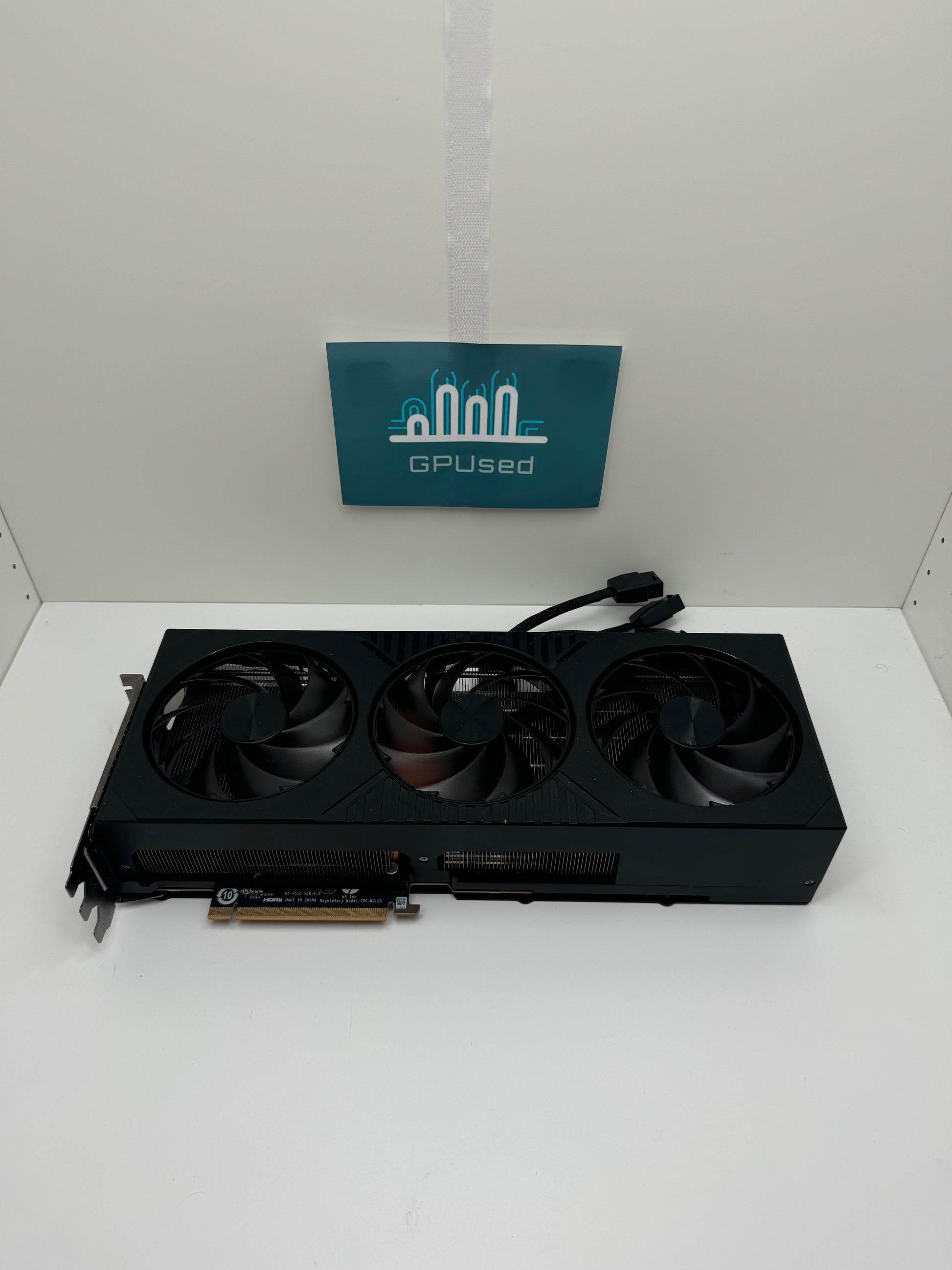

Nvidia GeForce RTX 4090 OEM RGB 24GB GDDR6X - A

Nvidia GeForce RTX 4090 OEM RGB 24GB GDDR6X - A

Regular price £1,299.99 GBP
Regular price Sale price £1,299.99 GBP
Sale Just sold out!
Tax included. Shipping calculated at checkout.

Product Description -

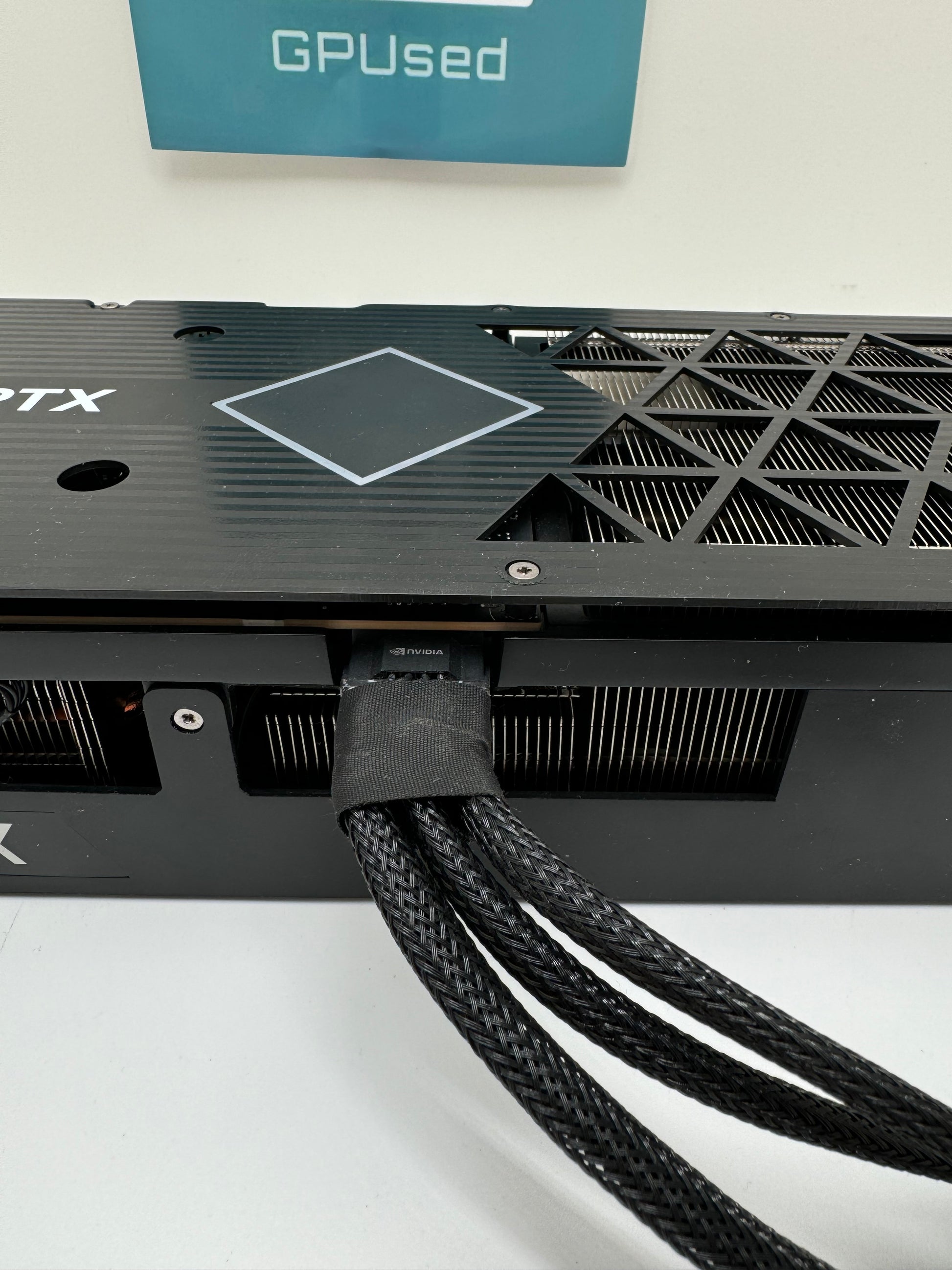

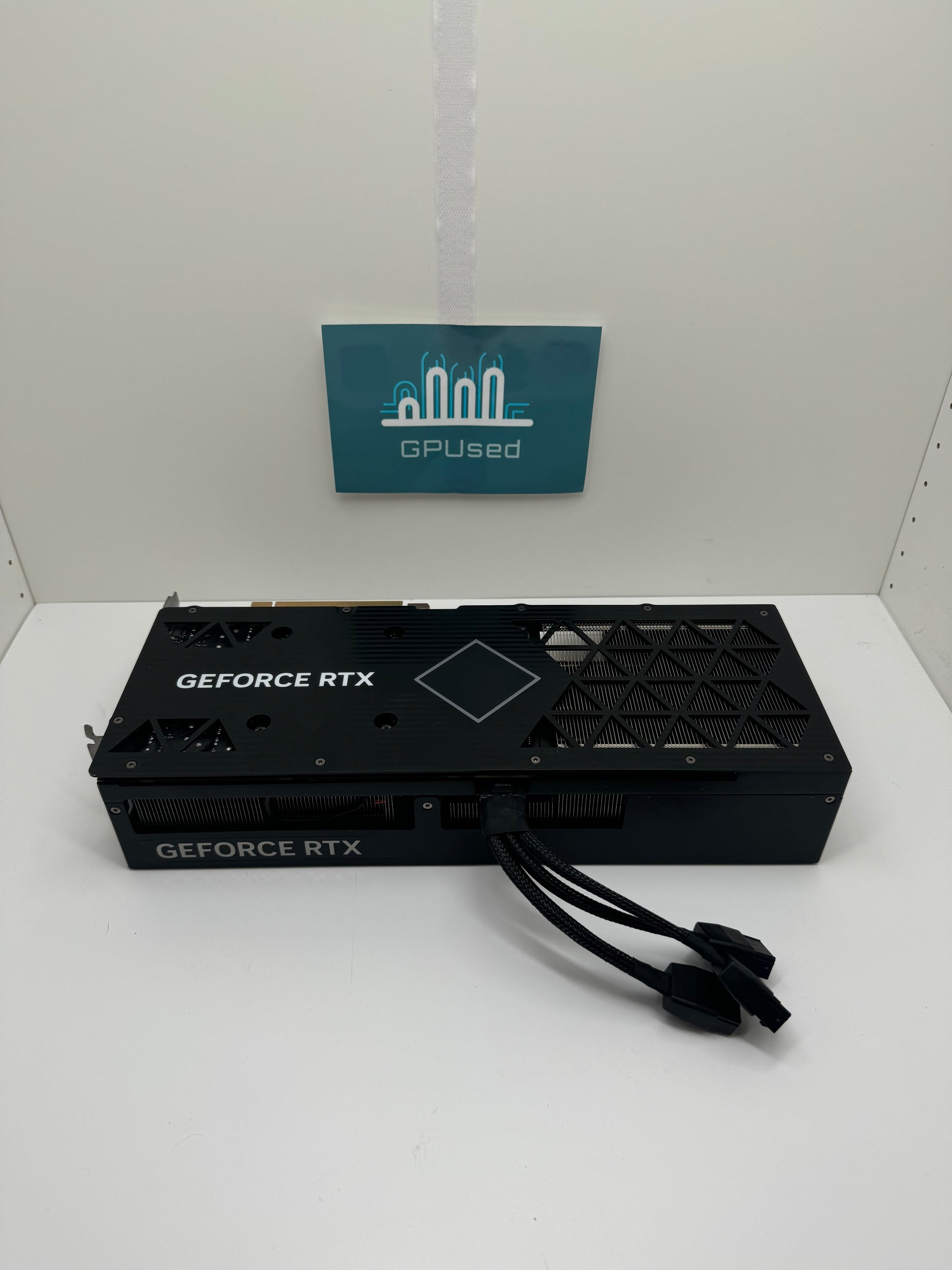

Summary - Excellent condition, working perfectly. The diamond shape on the back of the card is RGB, a lovely subtle touch to the black aesthetic. Highly powerful card, no box as it was stripped from a pre built PC. Specifications below -



Graphics Processor

GPU Name
AD102
GPU Variant
AD102-300-A1
Architecture
Ada Lovelace
Foundry
TSMC
Process Size
5 nm
Transistors
76,300 million
Density
125.3M / mm²
Die Size
609 mm²

Graphics Card

Release Date
Sep 20th, 2022
Availability
Oct 12th, 2022
Generation
GeForce 40
Predecessor
GeForce 30
Production
Active
Bus Interface
PCIe 4.0 x16

Clock Speeds

Base Clock
2235 MHz
Boost Clock
2520 MHz
Memory Clock
1313 MHz
21 Gbps effective

Memory

Memory Size
24 GB
Memory Type
GDDR6X
Memory Bus
384 bit
Bandwidth
1,008 GB/s

Render Config

Shading Units
16384
TMUs
512
ROPs
176
SM Count
128
Tensor Cores
512
RT Cores
128
L1 Cache
128 KB (per SM)
L2 Cache
72 MB

Theoretical Performance

Pixel Rate
443.5 GPixel/s
Texture Rate
1,290 GTexel/s
FP16 (half)
82.58 TFLOPS (1:1)
FP32 (float)
82.58 TFLOPS
FP64 (double)
1,290 GFLOPS (1:64)

Board Design

Slot Width
Triple-slot
Quad-slot
Length
304 mm
348 mm
12 inches
13.7 inches
Width
137 mm
160 mm
5.4 inches
6.3 inches
Height
61 mm
73 mm
2.4 inches
2.9 inches
TDP
450 W
Suggested PSU
850 W

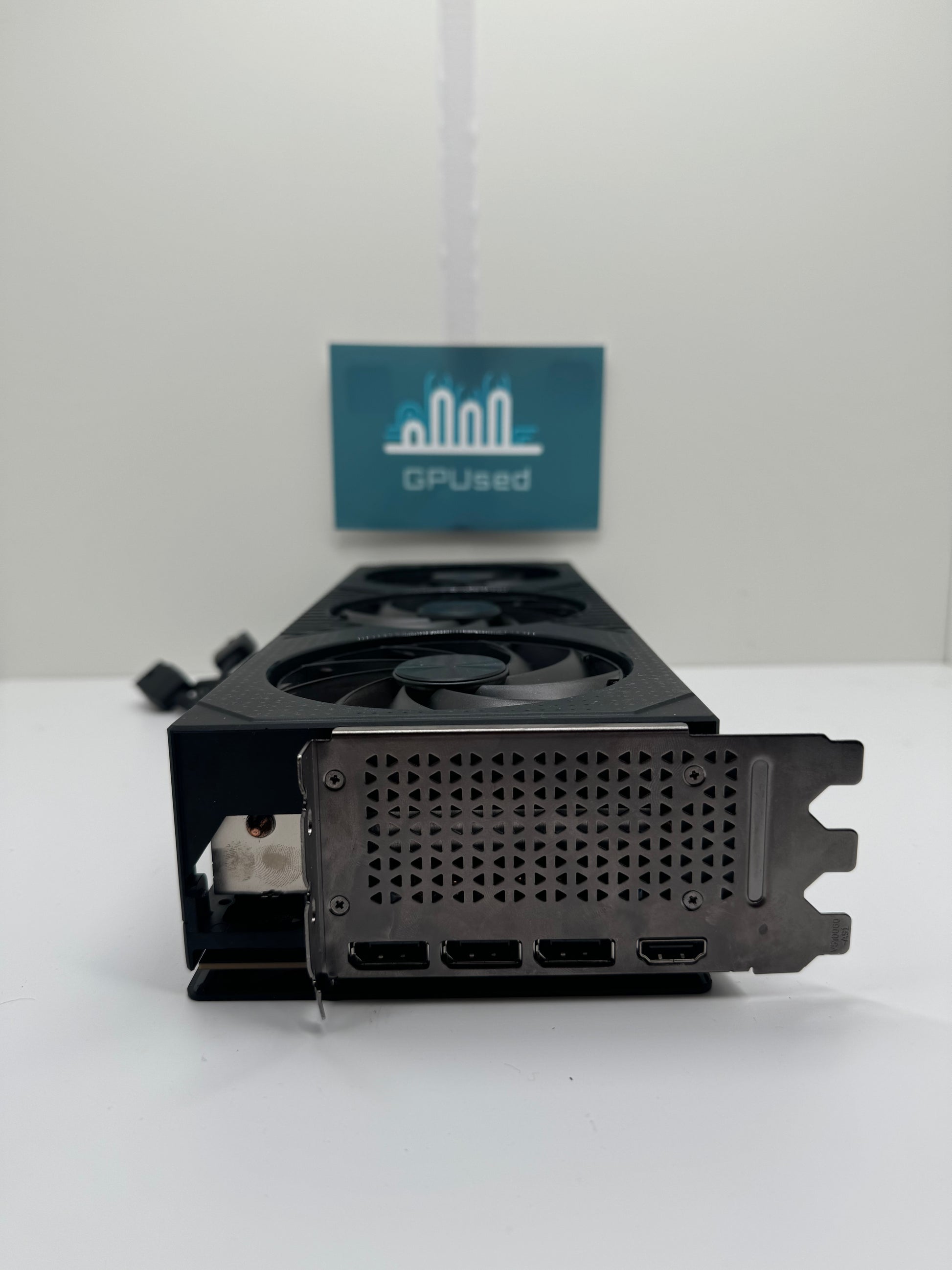

Outputs
1x HDMI 2.1
3x DisplayPort 1.4a

2x HDMI 2.1
3x DisplayPort 1.4a

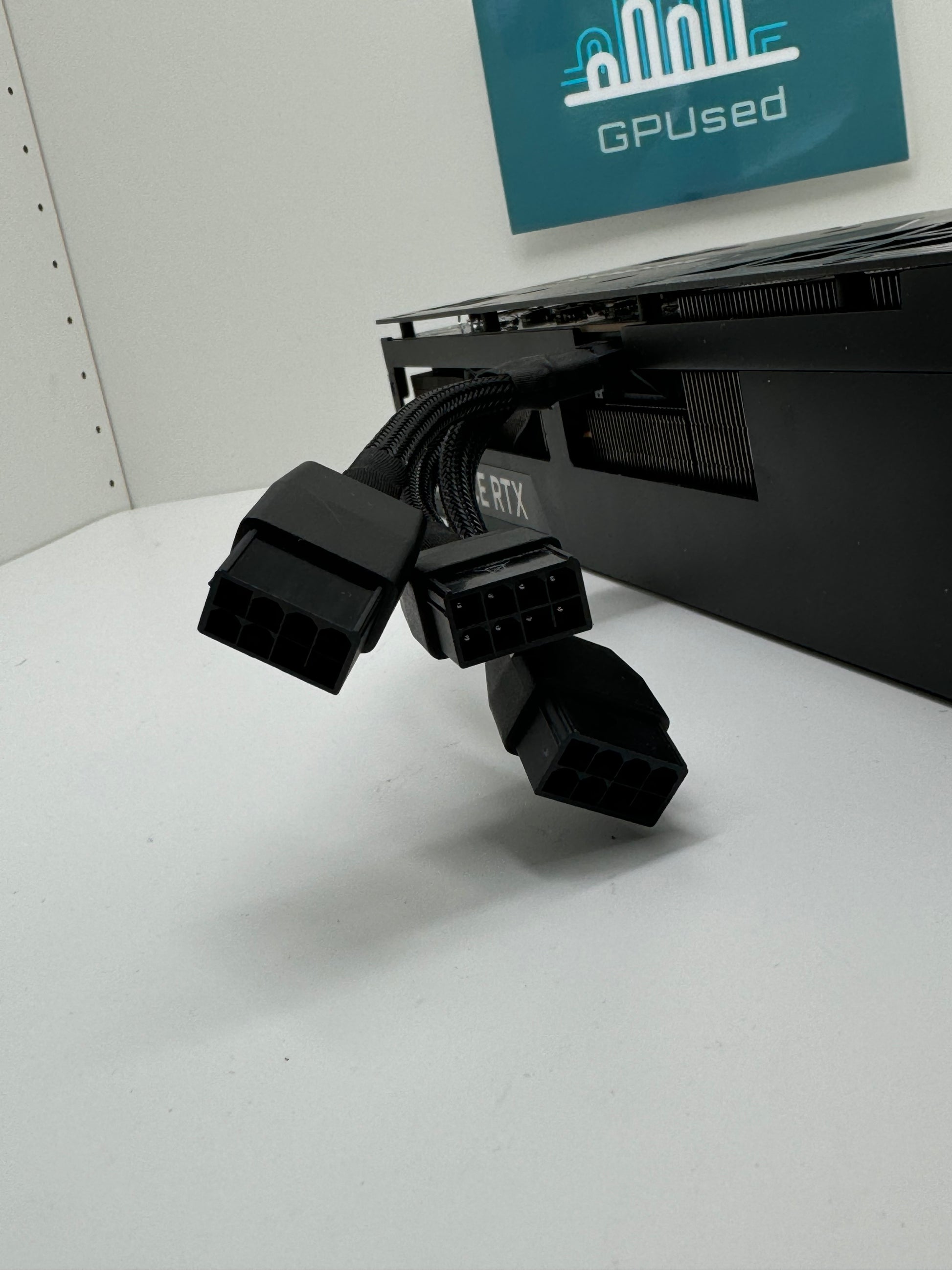

Power Connectors
1x 16-pin
Board Number
PG139 SKU 330

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.3
CUDA
8.9
Shader Model
6.7

AD102 GPU Notes

Ray Tracing Cores: 3rd Gen
Tensor Cores: 4th Gen
NVENC: 8th Gen
NVDEC: 5th Gen
PureVideo HD: VP12
VDPAU: Feature Set L



This card has passed several tests. Including a run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they pass all the tests we put them through. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition, although with a brand new card that’s fairly obviously going to be okay!!

All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.



Here's the GPUsed product grading system (currently only in place for GPUs)

A+ - New or Like new

A - Excellent / Very good for a used item (our most common grade)

B - Working (may have some cosmetic issues but won't affect performance)

C - Non working (we don't currently sell non working hardware)
