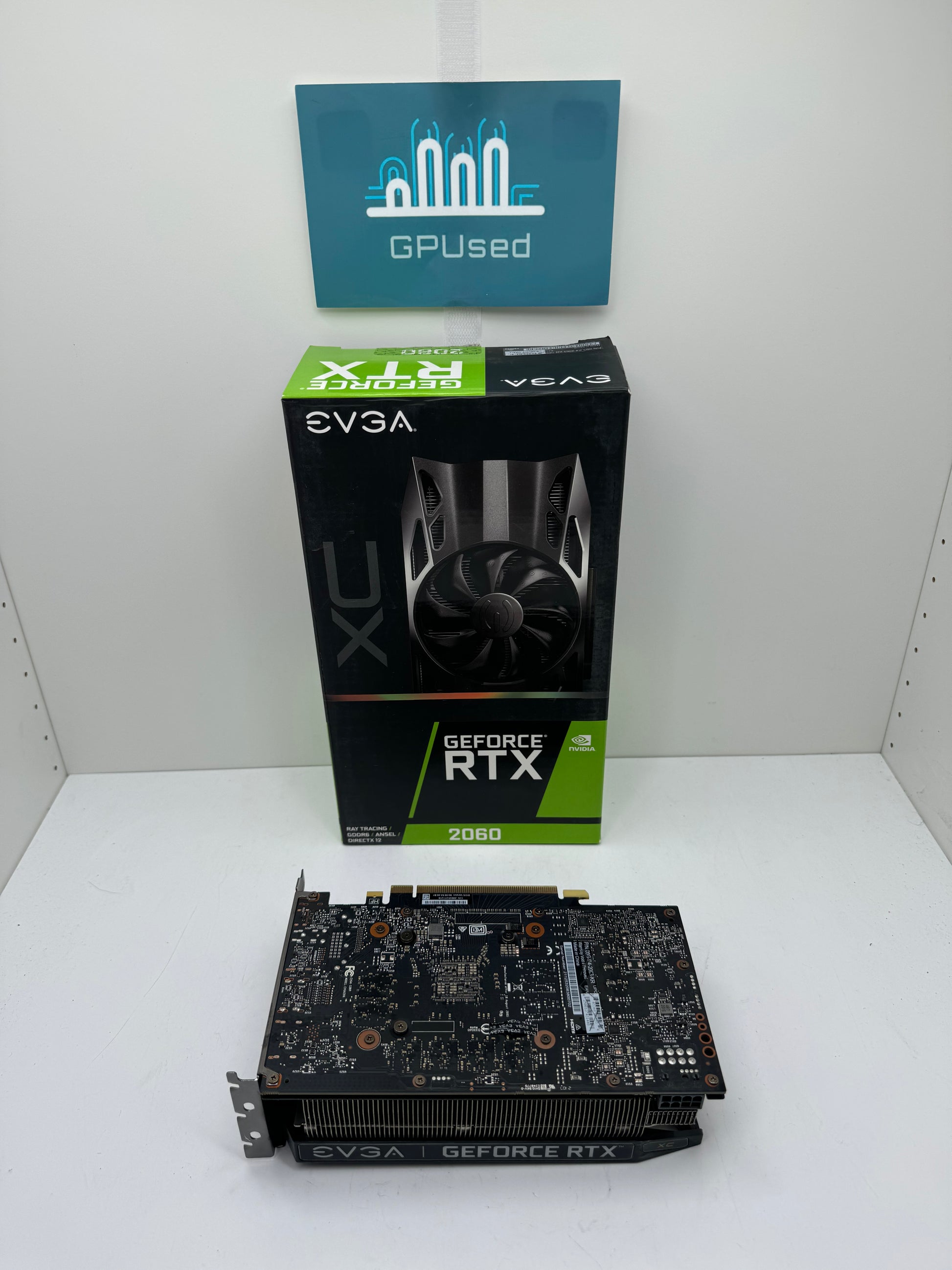

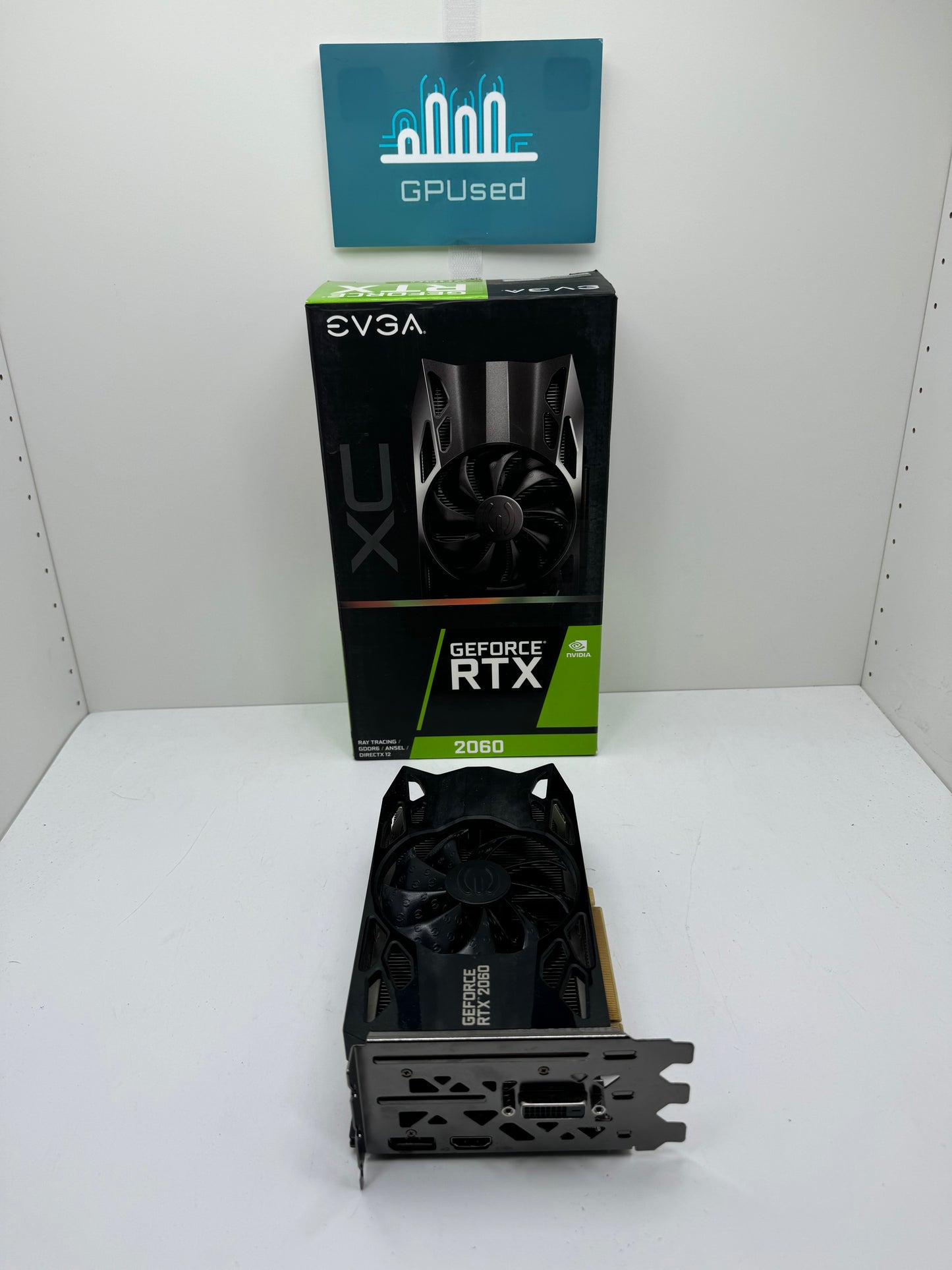

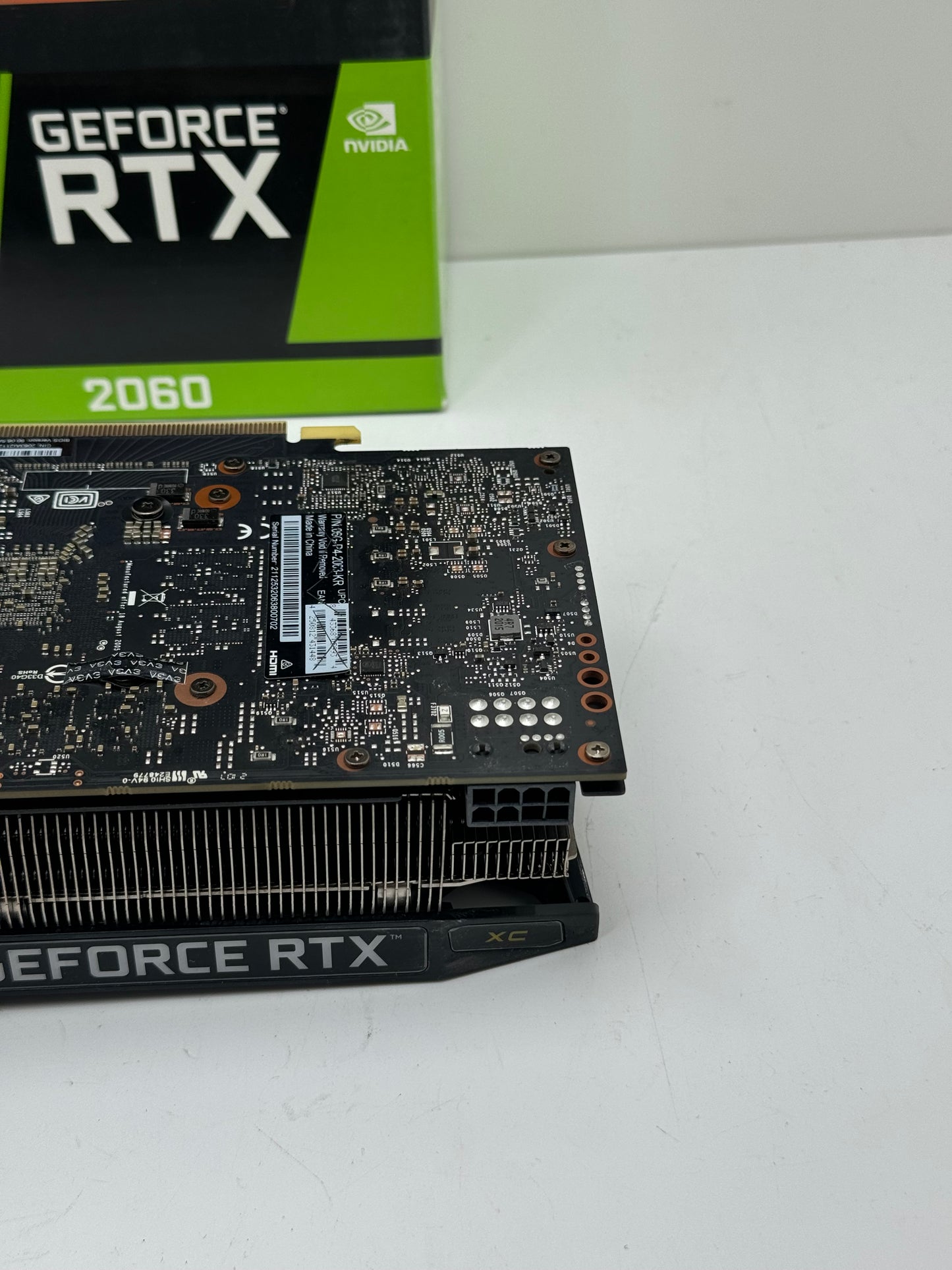

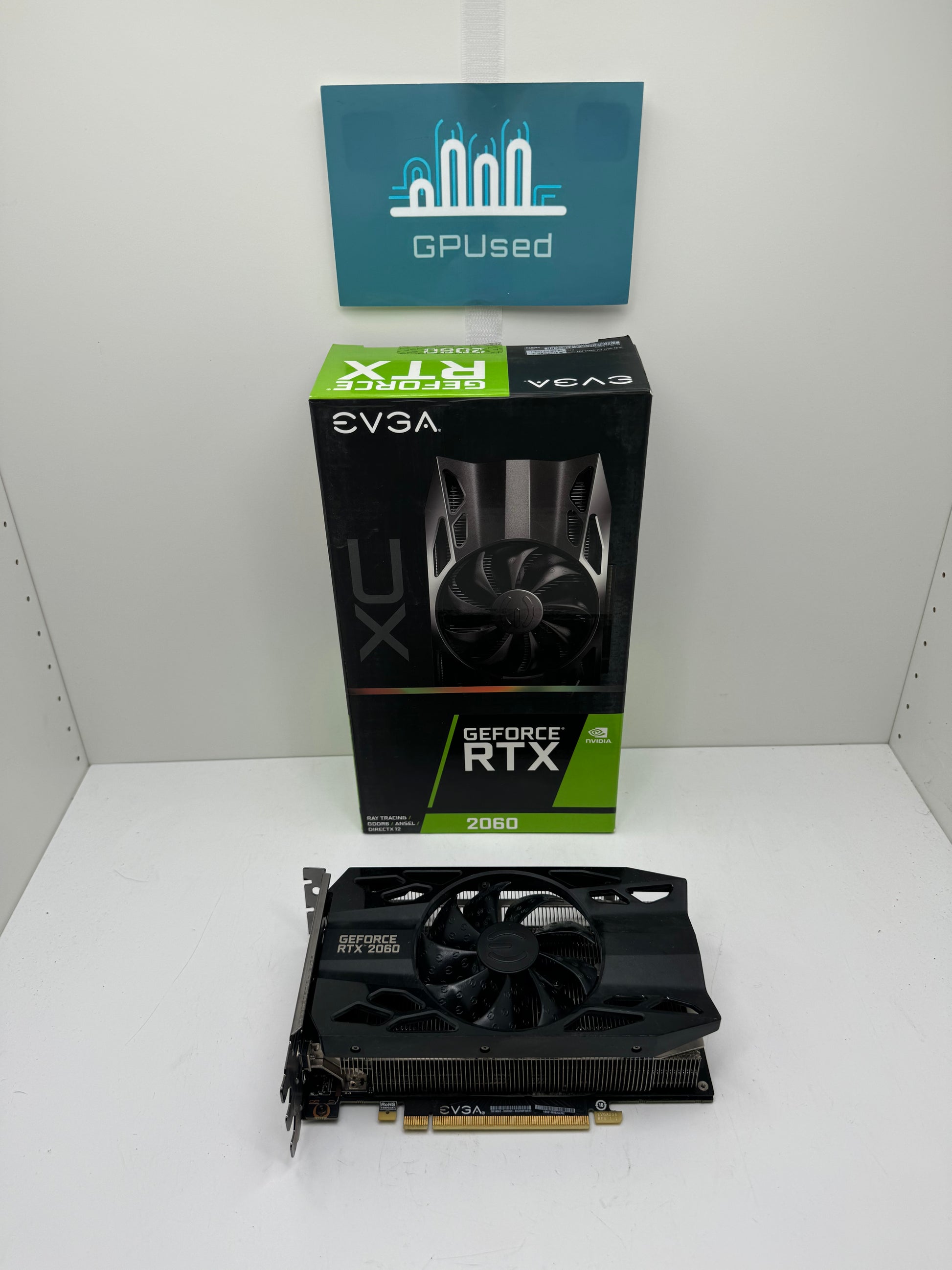

EVGA Nvidia GeForce RTX 2060 XC Gaming 6GB GDDR6 - A

EVGA Nvidia GeForce RTX 2060 XC Gaming 6GB GDDR6 - A

Regular price £129.99 GBP
Regular price Sale price £129.99 GBP
Sale Just sold out!
Tax included. Shipping calculated at checkout.

Product Description -



Summary - It’s in great condition and has been looked after well. With the box. Specifications below -





Graphics Processor

GPU Name
TU106
GPU Variant
TU106-200A-KA-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
10,800 million
Density
24.3M / mm²
Die Size
445 mm²
Chip Package
BGA-2228

Graphics Card

Release Date
Jan 7th, 2019
Generation
GeForce 20
Predecessor
GeForce 10
Successor
GeForce 30
Production
Active
Bus Interface
PCIe 3.0 x16

Clock Speeds

Base Clock
1365 MHz
Boost Clock
1680 MHz
Memory Clock
1750 MHz
14 Gbps effective

Memory

Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Bandwidth
336.0 GB/s

Render Config

Shading Units
1920
TMUs
120
ROPs
48
SM Count
30
Tensor Cores
240
RT Cores
30
L1 Cache
64 KB (per SM)
L2 Cache
3 MB

Theoretical Performance

Pixel Rate
80.64 GPixel/s
Texture Rate
201.6 GTexel/s
FP16 (half)
12.90 TFLOPS (2:1)
FP32 (float)
6.451 TFLOPS
FP64 (double)
201.6 GFLOPS (1:32)

Board Design

Slot Width
Dual-slot
Triple-slot
Length
229 mm
190 mm
9 inches
7.5 inches
Width
113 mm
111 mm
4.4 inches
TDP
160 W
Suggested PSU
450 W
Outputs
1x DVI
1x HDMI 2.0
2x DisplayPort 1.4a
1x USB Type-C

1x DVI
1x HDMI 2.0
1x DisplayPort 1.4a
Power Connectors
1x 8-pin
Board Number
PG160 SKU 42

Graphics Features

DirectX
12 Ultimate (12_2)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.3
CUDA
7.5
Shader Model
6.7

Card Notes

TU106-200-KA-A1 are Normal Chips (no factory OC permitted).
TU106-200A-KA-A1 are Binned Chips (factory OC permitted).

TU106 GPU Notes

Ray Tracing Cores: 1st Gen
Tensor Cores: 2nd Gen
NVENC: 7th Gen
NVDEC: 4th Gen
PureVideo HD: VP10
VDPAU: Feature Set J

This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!



All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.





Here's the GPUsed product grading system (currently only in place for GPUs)

A+ - New or Like new

A - Excellent / Very good for a used item (our most common grade)

B - Working (may have some cosmetic issues but won't affect performance)

C - Non working (we don't currently sell non working hardware)
