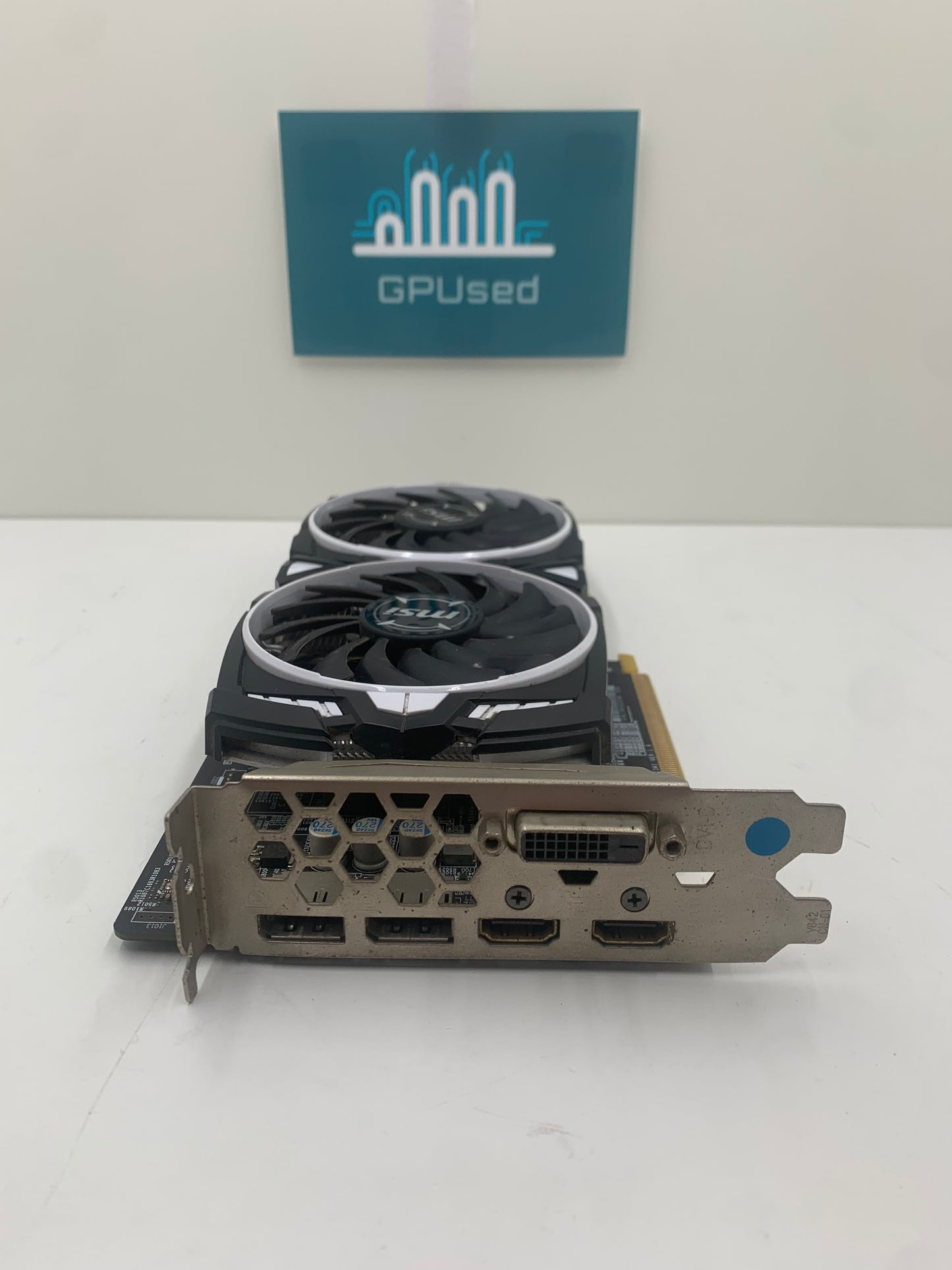

MSI AMD Radeon RX 580 Armor 8GB GDDR5 - A
MSI AMD Radeon RX 580 Armor 8GB GDDR5 - A
Couldn't load pickup availability
Product Description -
Summary - Good working condition. Specifications below -
Graphics Processor
- GPU Name
- Polaris 20
- GPU Variant
- Polaris 20 XL
(215-0910052)
- Architecture
- GCN 4.0
- Foundry
- GlobalFoundries
- Process Size
- 14 nm
- Transistors
- 5,700 million
- Density
- 24.6M / mm²
- Die Size
- 232 mm²
- Chip Package
- BGA-1401
Graphics Card
- Release Date
- Oct 15th, 2018
- Generation
-
Polaris
(RX 500)
- Predecessor
- Arctic Islands
- Successor
- Vega
- Production
- Active
- Bus Interface
- PCIe 3.0 x16
Clock Speeds
- Base Clock
- 1168 MHz
- Boost Clock
- 1284 MHz
- Memory Clock
- 1750 MHz
7 Gbps effective
Memory
- Memory Size
-
4 GB
8 GB
- Memory Type
- GDDR5
- Memory Bus
- 256 bit
- Bandwidth
- 224.0 GB/s
Render Config
- Shading Units
- 2048
- TMUs
- 128
- ROPs
- 32
- Compute Units
- 32
- L1 Cache
- 16 KB (per CU)
- L2 Cache
- 2 MB
Theoretical Performance
- Pixel Rate
- 41.09 GPixel/s
- Texture Rate
- 164.4 GTexel/s
- FP16 (half)
- 5.259 TFLOPS (1:1)
- FP32 (float)
- 5.259 TFLOPS
- FP64 (double)
- 328.7 GFLOPS (1:16)
Board Design
- Slot Width
- Dual-slot
- Length
-
241 mm
246 mm9.5 inches
9.7 inches
- Width
- 130 mm
5.1 inches
- Height
- 39 mm
1.5 inches
- TDP
- 150 W
- Suggested PSU
- 450 W
- Outputs
- 1x DVI
1x HDMI 2.0b
3x DisplayPort 1.4a
- Power Connectors
- 1x 8-pin
- Board Number
- C940,
D000
Graphics Features
- DirectX
- 12 (12_0)
- OpenGL
- 4.6
- OpenCL
- 2.1
- Vulkan
- 1.3
- Shader Model
- 6.7
Card Notes
| China Only SKU |
Polaris 20 GPU Notes
| Generation: Polaris Codename: Ellesmere Graphics/Compute: GFX8 (gfx803) Display Core Engine: 11.2 Unified Video Decoder: 6.3 Video Compression Engine: 3.4 System DMA: 3.0.0 CLRX: GCN 1.2.0 |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
<head><meta charset="UTF-8" /></head>
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Feel free to check out our reviews on Google and Trustpilot for added piece of mind :
GPUsed - 4.9* Reviews on Trustpilot
If you’re looking to sell a graphics card to us. Simply get in touch via the contact form at the following link for a personalised quote : https://www.gpused.co.uk/contact
Why buy from GPUsed?
Buying used tech can save serious money, but only if the item is properly tested & thoroughly checked first. GPUsed is a specialist in tested used graphics cards and other PC components, trusted by 10,000+ customers with 1,000+ independent reviews and a 4.9/5 average rating.
Tested before listing
This used GPU is checked before listing. Our GPU checks include a 1 hour FurMark temperature test, 2 Unigine benchmark runs for graphics performance, a GPU-Z legitimacy check and a visual inspection.
Clearer than marketplaces
eBay, Facebook Marketplace and Gumtree can sometimes be cheaper, but seller quality varies heavily. GPUsed gives you a tested item from a specialist UK seller, with clear grading, proper packaging and support from a real team.
Ready to dispatch
This item is in stock and ready to send from GPUsed. UK delivery is free, with a next day upgrade available at checkout. Orders are packed properly so the item arrives safely.
