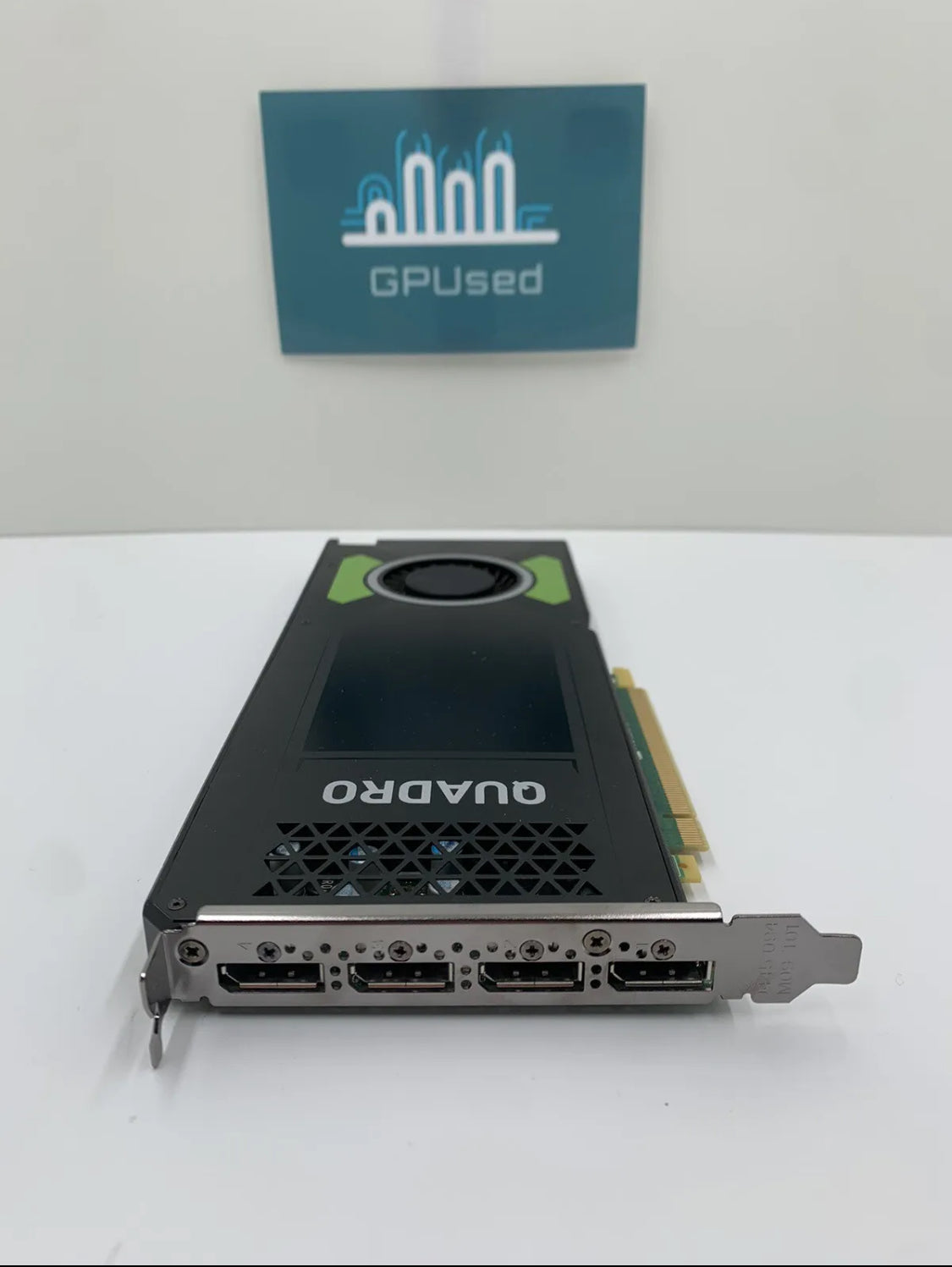

Nvidia Quadro M4000 8GB GDDR5 - A

Nvidia Quadro M4000 8GB GDDR5 - A

Regular price £59.99 GBP
Regular price Sale price £59.99 GBP
Sale Just sold out!
Tax included. Shipping calculated at checkout.

Product Description -



Summary - Great condition apart from some scratches on the front, working perfectly. Specifications below -



Graphics Processor

GPU Name
GM204
GPU Variant
GM204-850-A1
Architecture
Maxwell 2.0
Foundry
TSMC
Process Size
28 nm
Transistors
5,200 million
Density
13.1M / mm²
Die Size
398 mm²
Chip Package
BGA-1745

Graphics Card

Release Date
Jun 29th, 2015
Generation
Quadro Maxwell
(Mx000)
Predecessor
Quadro Kepler
Successor
Quadro Pascal
Production
End-of-life
Bus Interface
PCIe 3.0 x16

Relative Performance

GeForce 210
3%
GeForce 9400 GT
4%
Radeon HD 4550
5%
Radeon HD 5450
7%
Radeon HD 6450
8%
GeForce GT 520
9%
GeForce GT 220
11%
GeForce GT 430
14%
Radeon HD 5570
14%
Radeon HD 4670
15%
GeForce GT 440
16%
GeForce GT 240
16%
GeForce 9600 GT
19%
Radeon HD 5670
20%
GeForce GT 640
21%
GeForce 9800 GT
22%
Radeon HD 6670
23%
Radeon HD 4830
24%
Radeon HD 4770
25%
Radeon HD 4850
27%
GeForce GTS 250
27%
GeForce GTS 450
28%
Radeon HD 5750
29%
Radeon HD 7750
33%
Radeon HD 5770
33%
GeForce GTX 260
34%
Radeon HD 4870
34%
Radeon Vega 8
35%
GeForce GTX 550 Ti
35%
GeForce GTX 650
35%
Radeon HD 5830
37%
Radeon HD 6790
39%
Radeon HD 4890
40%
GeForce GTX 460
41%
Radeon RX Vega 11
42%
GeForce GT 1030
42%
GeForce GTX 275
42%
Radeon HD 7770 GHz Edition
43%
GeForce GTX 280
43%
GeForce GTX 465
43%
Radeon HD 6850
46%
GeForce GTX 285
46%
Radeon HD 5850
50%
GeForce GTX 650 Ti
51%
Radeon HD 7790
51%
Radeon RX 550
53%
GeForce GTX 470
53%
Radeon HD 6870
55%
Radeon HD 5870
59%
GeForce GTX 560 Ti
60%
Radeon HD 4870 X2
61%
GeForce GTX 750 Ti
62%
Radeon HD 6950
62%
GeForce GTX 295
64%
GeForce GTX 650 Ti Boost
65%
Radeon HD 7850
66%
GeForce GTX 480
67%
Radeon HD 6970
70%
Radeon R7 265
71%
Radeon RX 460
72%
Radeon R7 370
72%
GeForce GTX 660
73%
GeForce GTX 570
73%
Radeon RX 560
74%
GeForce GTX 950
79%
Radeon HD 7870 GHz Edition
79%
Radeon R9 270X
81%
GeForce GTX 660 Ti
82%
GeForce GTX 580
83%
GeForce GTX 1050
83%
Radeon HD 7950
83%
GeForce GTX 1630
85%
Radeon HD 5970
85%
GeForce GTX 760
87%
GeForce GTX 670
94%
GeForce GTX 960
97%
Radeon R9 380
99%
Radeon R9 285
100%
Quadro M4000
100%
Radeon HD 7970
101%
GeForce GTX 680
102%
GeForce GTX 1050 Ti
104%
GeForce GTX 770
107%
Radeon HD 6990
109%
Radeon R9 280X
112%
GeForce GTX 590
113%
Radeon HD 7970 GHz Edition
113%
GeForce GTX 780
126%
Arc A380
126%
Radeon RX 6400
128%
GeForce GTX 1650
130%
Radeon RX 470
138%
Radeon R9 290
140%
Radeon RX 570
148%
Radeon R9 390
150%
Radeon R9 290X
150%
GeForce GTX 970
152%
GeForce GTX TITAN
154%
GeForce GTX 780 Ti
156%
Radeon R9 390X
159%
Radeon HD 7990
159%
Radeon RX 480
160%
GeForce GTX 690
162%
GeForce GTX 1060 6 GB
166%
Radeon RX 5500 OEM
168%
Radeon RX 580
170%
Radeon RX 5500 XT
172%
Radeon RX 6500 XT
173%
GeForce GTX 980
174%
GeForce GTX 1650 SUPER
175%
Radeon R9 FURY
176%
Radeon RX 590
184%
Radeon R9 295X2
194%
GeForce GTX 1660
195%
Radeon R9 FURY X
197%
GeForce GTX 980 Ti
200%
GeForce GTX TITAN X
205%
GeForce GTX 1660 SUPER
212%
GeForce GTX 1660 Ti
223%
GeForce GTX 1070
223%
GeForce RTX 3050 8 GB
227%
Radeon RX Vega 56
238%
GeForce GTX 1070 Ti
252%
Radeon RX 5600 XT
256%
Radeon RX Vega 64
259%
GeForce GTX 1080
263%
GeForce RTX 2060
263%
Radeon RX 5700
274%
Arc A580
274%
Radeon RX 6600
286%
GeForce RTX 2060 SUPER
296%
GeForce RTX 2070
299%
Radeon RX 5700 XT
300%
GeForce RTX 3060 12 GB
305%
Arc A750
315%
Radeon VII
317%
TITAN X Pascal
325%
Radeon RX 6600 XT
329%
GeForce GTX 1080 Ti
335%
Arc A770
338%
GeForce RTX 2070 SUPER
339%
Radeon RX 6650 XT
356%
Radeon RX 7600
360%
GeForce RTX 4060
362%
GeForce RTX 2080
364%
Radeon RX 7600 XT
372%
GeForce RTX 2080 SUPER
382%
GeForce RTX 3060 Ti
391%
Radeon RX 6700 XT
405%
Radeon RX 6750 XT
430%
GeForce RTX 4060 Ti 8 GB
435%
GeForce RTX 2080 Ti
438%
GeForce RTX 3070
458%
GeForce RTX 3070 Ti
490%
Radeon RX 7700 XT
496%
Radeon RX 6800
505%
GeForce RTX 4070
560%
Radeon RX 6800 XT
574%
GeForce RTX 3080
596%
Radeon RX 7800 XT
602%
Radeon RX 6900 XT
618%
GeForce RTX 4070 SUPER
649%
GeForce RTX 3080 Ti
667%
Radeon RX 6950 XT
668%
GeForce RTX 3090
680%
GeForce RTX 4070 Ti
697%
GeForce RTX 4070 Ti SUPER
761%
Radeon RX 7900 XT
782%
GeForce RTX 3090 Ti
789%
GeForce RTX 4080
885%
GeForce RTX 4080 SUPER
899%
Radeon RX 7900 XTX
907%
GeForce RTX 4090
1112%
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
773 MHz
Memory Clock
1502 MHz
6 Gbps effective

Memory

Memory Size
8 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
192.3 GB/s

Render Config

Shading Units
1664
TMUs
104
ROPs
64
SMM Count
13
L1 Cache
48 KB (per SMM)
L2 Cache
2 MB

Theoretical Performance

Pixel Rate
49.47 GPixel/s
Texture Rate
80.39 GTexel/s
FP32 (float)
2.573 TFLOPS
FP64 (double)
80.39 GFLOPS (1:32)

Board Design

Slot Width
Single-slot
Length
241 mm
9.5 inches
Width
111 mm
4.4 inches
TDP
120 W
Suggested PSU
300 W
Outputs
4x DisplayPort 1.2
Power Connectors
1x 6-pin
Board Number
PG400 SKU 501

Graphics Features

DirectX
12 (12_1)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.3
CUDA
5.2
Shader Model
6.7 (6.4)

GM204 GPU Notes

NVENC: 5th Gen
NVDEC: 1st Gen
PureVideo HD: VP6
VDPAU: Feature Set E


This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models). Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us! If you’d like proof of any tests, just let us know and we’ll send the photos over for you :)



All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.



Here's the GPUsed product grading system (currently only in place for GPUs)

A+ - New or Like new

A - Excellent / Very good for a used item (our most common grade)

B - Working (may have some cosmetic issues but won't affect performance)

C - Non working (we don't currently sell non working hardware)





Feel free to check out our reviews on Google and Trustpilot for added piece of mind :

GPUsed - 4.9* Reviews on Trustpilot

GPUsed - 5* Reviews on Google


If you’re looking to sell a graphics card to us. Simply get in touch via the contact form at the following link for a personalised quote : https://www.gpused.co.uk/contact
